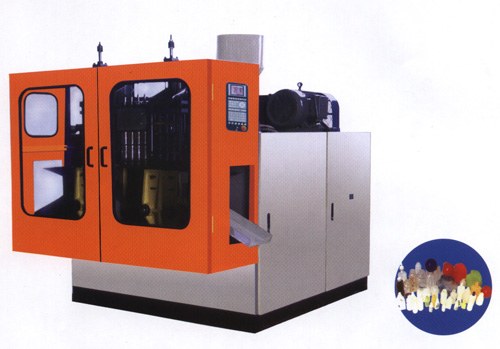

Blow Molding Machine
 |
| Series Automatic Plastics Blow Moulding | |
|
Material |
PE/PP/PA/PVC |
|
Max container capacity |
2 L |
|
Number of die |
set |
|
dry cycle time |
2000 Pc/hr |
|
Machine dimension(LxWxH) |
2.3x1.6x2.2 m |
|
Total weight |
3 ton |
|
Clamping unit |
35 KN |
| Platen Force | 180-308 mm |
|
Platen opening stroke |
280x230 Mm |
|
Max mould size(WxH) |
280x230 Mm |
|
Mould thickness |
110-200 Mm |
|
Max drive |
5.5 KW |
|
Total power |
20 KW |
|
Air pressure |
0.6 Mpa |
|
Air consumption |
0.8 m3/min |
|
Average energy consumption |
8 KW/hr |
|
Screw diameter |
Φ50 Mm |
|
Screw L/D ration |
23:1 L/D |
|
Plasticising capacity |
50 Kg/hr |
|
Number of heating zone |
3 zone |
|
Extruder driving power |
5.5 KW |
|
Number of heating zone |
3-5 KW |
|
Power of die heating |
6 KW |
|
Max die-pin diameter |
Φ75 mm |
|
Center distance of double die |
170 L |
