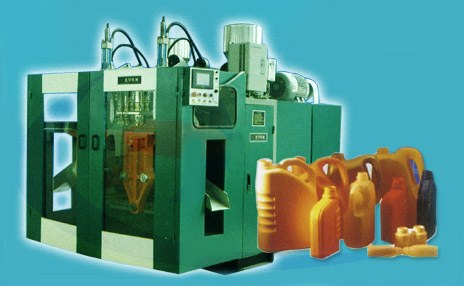

Blow Molding Machine
 |
Specifications |
|
|---|---|
| Machine Model | |
| LHB65D | |
| Max.Product Capacity | |
| 5 L | |
| Output(Cycle Time) | |
| 300/480 Pc/Hr | |
| Machine Dimension | |
| 3.4*2.2*2.5 m | |
| Machine Weight | |
| 3.7 T | |
| Power |
|
| Total Power | |
| 42.5 Kw | |
| Average power consumption | |
| 26 Kw | |
| Air Pressure | |
| 0.6 bar | |
| Air Consumption | |
| 0.4/0.8 M3/min | |
| Cooling Water Pressure | |
| 3/6 bar | |
Extruding System |
|
| Screw Diameter | |
| 65 mm | |
| Screw L/D ratio | |
| 24 | |
| Extruder driving power | |
| 18.5 Kw | |
| No.of Heaters | |
| 3 | |
| Screw Heating Power | |
| 11.1 Kw | |
| HDPE Plasticising Capapcity | |
| 56 Kg/H | |
Single Die Head |
|
| Max．Die-pin Diameter | |
| 135 mm | |
| Number Of Heating，Zone | |
| 2 | |
| Heating Power Of Die Head | |
| 4.4 Kw | |
Double Die Head |
|
| Center Distance Of Die Head | |
| 160 mm | |
| Max．Die-Pin Diameter | |
| 70 mm | |
| Number Of Heating Zone | |
| 3 | |
| Heating Power Of Die Head | |
| 6.4 Kw | |
Tri-die Head |
|
| Center Distance Of Die Head | |
| 110 mm | |
| Max．Die-pin Diameter | |
| 55 mm | |
| Number Of Heating Zone | |
| 4 Kw | |
| Heating Power Of Die Head | |
| 6.5 Kw | |
Tetra-die Head |
|
| Center Distance Of Die Head | |
| 85 mm | |
| Max．Die-pin Diameter | |
| 30 mm | |
| Number Of Heating Zone | |
| 5 | |
| Heating Power Of Die Head | |
| 6.5 Kw | |
Clamping System |
|
| Clamping Force | |
| 55 KN | |
| Platen Size | |
| 290*360 mm | |
| Platen Opening Stroke | |
| 150-500 mm | |
| Max．Mould Size | |
| 350*360 mm | |
| Mould Thickness | |
| 155-300 mm | |
